Post by S520 Fri Sep 21, 2018 3:52 pm

Hello there, I'm S520. I'd like to introduce new features which I added.

1. Display of remaining distance to the next station.
First of all, I added display of remaining distance. It works shown as below.

New Features: Display of remaining distance to the next station and gradient in ‰ Dist_n10

Left: Stops at the next station.
Middle: Pass the next station.
Right: 10 meters left to the stop.

Press Ctrl+D to display remaining distance to the next station in form that [Stop or Pass]: [Remaining distance (m)]. If you press Ctrl+D again, remaining distance will be displayed in mile.


2. Display of Gradient in ‰.
I also added display of gradient in ‰ mainly for Japanese users. To use this, press Ctrl+N three times.

openBVE which includes these features is now available on here.
https://vps.bvecornwall.co.uk/OpenBVE/Builds/OpenBVE-2018-09-18.zip

In addition, I'm working for another brand new feature. STAY TUNED!

This post was translated by F81 tec200. I really appreciate it.
S520
S520

Posts : 113
Join date : 2018-08-24
Location : Japan

https://github.com/s520

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by Phonteus Nevolius Fri Sep 21, 2018 10:05 pm

Great work, thank you. I noticed something strange though:

The first image shows the gradient in per cent, the second in ratio, the third in per mille. Now the first one, the per cent seems incorrect. Shouldn't it be 1.5% instead of 15? Because 1 / 67 ≈ 0.015 - if I'm not mistaken. So the per mille value is good.


New Features: Display of remaining distance to the next station and gradient in ‰ Gradie10
New Features: Display of remaining distance to the next station and gradient in ‰ Gradie11
New Features: Display of remaining distance to the next station and gradient in ‰ Gradie12
Phonteus Nevolius
Phonteus Nevolius

Posts : 120
Join date : 2017-10-05
Location : Hungary

https://phonteusnevolius.wordpress.com

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by S520 Fri Sep 21, 2018 10:40 pm

Thank you for your comment.
As you say, it is 0.015 = 0.15% = 1.5 ‰.
However, in Europe, especially in the UK, % and ‰ are said to be synonymous.
S520
S520

Posts : 113
Join date : 2018-08-24
Location : Japan

https://github.com/s520

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by Phonteus Nevolius Fri Sep 21, 2018 10:54 pm

I live in Europe, in Hungary and here we talk about gradients in per mille, so I'm happy about this feature. I hope Chris will have a look at the per cent value though.
Phonteus Nevolius
Phonteus Nevolius

Posts : 120
Join date : 2017-10-05
Location : Hungary

https://phonteusnevolius.wordpress.com

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by Quork Sat Sep 22, 2018 12:49 am

No, per cent and per mille aren't synonymous. There's a distinct difference between hundred and thousand Wink

...and I hate typing in the forum on the mobile phone, tends to delete chunks of text... Here we go again:

What you could have heard about is that some railways rather use percent and others permille. Germany uses permille for example. What's noteworthy is that the values aren't linearly connected. In the context of steepness values, "percent" usually denotes the sine of the angle (i.e. height per track length) while "permille" usually are the tangent of the angle (i.e. height per air distance), meaning 1% isn't exactly 10‰. However the difference is purely academic, since sine and tangent don't diverge significantly until way outside the angle range feasible in rail transport.

EDIT
http://www.wolframalpha.com/input/?i=y+%3D+(tan(x)-sin(x))%2Fsin(x)+for+0+%3C%3D+x+%3C%3D+3%C2%B0
Here you can see how minuscule the difference is; for railways it rarely exceeds 0.1% of the value Laughing
Quork
Quork

Posts : 1438
Join date : 2012-05-05
Age : 33
Location : Hofheim a.T., Hessen (Hesse), European Union

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by S520 Sat Sep 22, 2018 3:19 am

Thank you for your comment.

Previously Midnight Express Ginga 81 asked leezer3 this problem.
From Midnight Express Ginga81:
When I asked to leeser3, he answered that 'in the Britain, % and per mile is the difference meaning, but display usage is the same. So, I am not schedule that the display character is change to '‰'. '
He said to me, so I thought that leeser3 is not schedule to change this problem.

Should I create a pull request to fix this probrem?
Please let me hear your opinion.
S520
S520

Posts : 113
Join date : 2018-08-24
Location : Japan

https://github.com/s520

Back to top Go down

New Features: Display of remaining distance to the next station and gradient in ‰ Empty Re: New Features: Display of remaining distance to the next station and gradient in ‰

Post by Phonteus Nevolius Sat Sep 22, 2018 8:48 am

Quork, thank you for your explanation and S520 thank you for the background info.

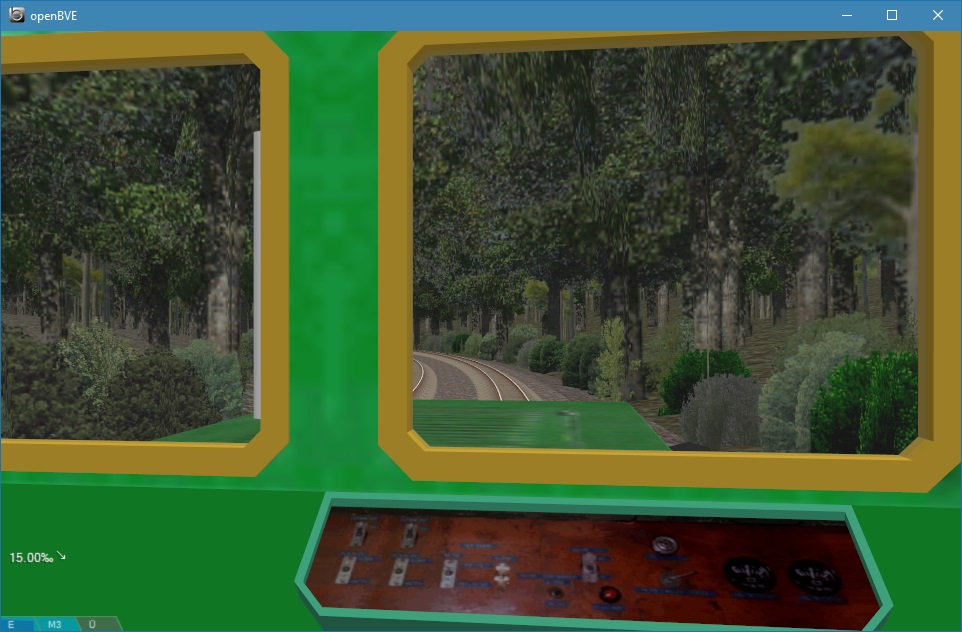

Mathematically speaking it is quite strange that for the first Ctrl + N I see that the gradient is 15% and if I go to per mille it is 15‰, and the pitch value is the same in the route. The same number but two different units, which express a difference of ten times multiplication. The decimal point seems to be in the wrong place. With my Central European mind where gradient is expressed in ‰ I would think considering a pull request about this is a good idea.
