Something a bit different

Post by graymac on Fri Jun 15, 2018 9:48 pm

Here's a cute little thing
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by graymac on Sat Jun 16, 2018 3:12 pm



Pretty much finished the external. Needs a .dat file to be made and some controls. I don't have interior details just yet and it might end up with a 3D cab, which I've never done before.



Rather empty just now!!
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by graymac on Mon Jun 18, 2018 12:09 pm

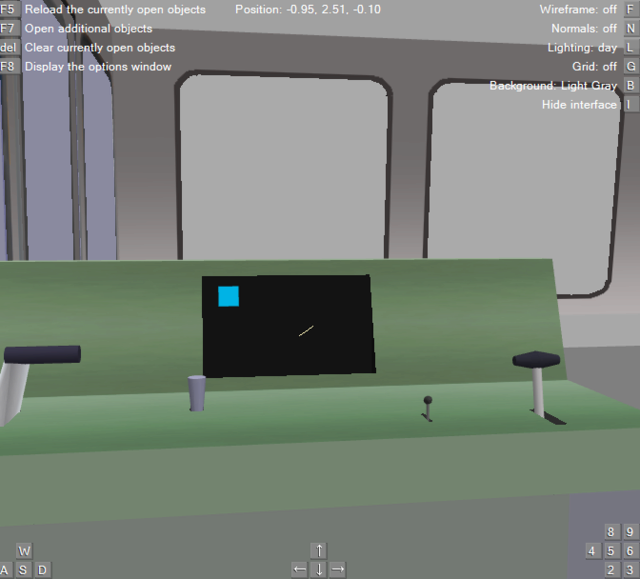

Made a start on the controls etc. It is an animated cab, which is entirely experimental cos I never did one before. It only needs simple controls, - "go", "stop", "F-R" "toot-toot" and the speedo, which I've done, plus CAWS aspect display to do. I got a doors light working too.
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by Dexter on Mon Jun 18, 2018 12:58 pm

How do you like the 3D cab programming? I was thinking about a 3D cab myself, but I am not sure whether it's worth the effort...
avatar
Dexter

Posts : 1909
Join date : 2011-07-08
Age : 32
Location : Brno, Czech republic

http://www.brnobve.eu

Back to top Go down

Re: Something a bit different

Post by graymac on Mon Jun 18, 2018 4:05 pm

Making the component objects isn't all that difficult. I'm not very good with .animated formulae though.  I'm mostly adapting examples from existing code to suit the job. I dare say if one is fluent in animated functions then it isn't too bad, but I can put a panel2  cab together much, much quicker, even though this little car is only simple. This departmental vehicle wouldn't suit a  2D cab, or I would probably have given it one.
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by graymac on Wed Jun 20, 2018 2:18 pm

Who wants to play?? This is really fun, top speed about 55mph.
http://celtictrainsim.com/ctsdownloads/packages/train/723_IE.zip

Beta to try out.
Errors showing on loading are to do with emergency brake
EbHandleBehaviour is invalid at line 42 in C:\Trainsim2016\Train\723_IE\train.dat
which I think may be "version related"?? Doesn't stop it from working.



avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by ap1991 on Wed Jun 20, 2018 3:38 pm

Nice 3D cab!
avatar
ap1991

Posts : 141
Join date : 2014-07-25
Age : 26
Location : Warwickshire

Back to top Go down

Re: Something a bit different

Post by graymac on Wed Jun 20, 2018 4:09 pm

Thanks! A panel2 wouldn't have worked, so I had no alternative but to go 3D.
Incidentally, the cab is almost 100% guesswork, as I've no opportunity to get near the real one. The exterior is authentic, from photos made available from the internet and from forum member hurricaneMk2



Last edited by graymac on Wed Jun 20, 2018 6:58 pm; edited 1 time in total
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by graymac on Wed Jun 20, 2018 4:42 pm

The real thing
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by Quork on Wed Jun 20, 2018 11:52 pm

I could try and get some photos of the inside of a German Skl, it's not the same vehicle of course but it'd allow for an educated guess about the inside of other similar vehicles. Do you want me to try?
avatar
Quork

Posts : 1195
Join date : 2012-05-05
Age : 27
Location : Hofheim a.T., Hessen (Hesse), European Union

Back to top Go down

Re: Something a bit different

Post by graymac on Thu Jun 21, 2018 9:52 am

Thanks for the offer. Could be useful if I decide to make any more departmental machines, though I intended this to be a "one-off" mainly for the novelty value. I'm going to leave this one "as is", it has what it needs to work up and down ("up" anyway Smile - until bve is bi-directional) the track. I believe this vehicle is of German origin, wasn't it built by Plasser & Theurer? Well, Austrian at least.
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by Quork on Thu Jun 21, 2018 10:56 am

Plasser&Theurer are selling stuff all over the world, but not that much in Germany actually. Schöma, Robel, Windhoff, Gleisbaumechanik are the dominant producers here.
avatar
Quork

Posts : 1195
Join date : 2012-05-05
Age : 27
Location : Hofheim a.T., Hessen (Hesse), European Union

Back to top Go down

something different

Post by jckhinks on Thu Jun 21, 2018 4:33 pm

hi graham. tokk this for a bit of a spin and the speedo flickers i.e the numbers and markings other than that i thing you have excelled with this beauty.regards jack
avatar
jckhinks

Posts : 109
Join date : 2012-08-22
Age : 68
Location : maltby

Back to top Go down

Re: Something a bit different

Post by graymac on Thu Jun 21, 2018 5:27 pm

Thanks, Jack. I'm not seeing this on my screen. However, just to be "on the safe side" I've given the speed dial face a bit more "clearance" from the backing object, to be sure there's no z-fighting. See if it's better now.

avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by Quork on Thu Jun 21, 2018 6:01 pm

I'd rather considering putting a hole in the backing object.
avatar
Quork

Posts : 1195
Join date : 2012-05-05
Age : 27
Location : Hofheim a.T., Hessen (Hesse), European Union

Back to top Go down

Re: Something a bit different

Post by HijauKuda on Thu Jun 21, 2018 6:12 pm

graymac wrote:...wasn't it built by Plasser & Theurer?...

Sir graymac
I do think by Matisa of the Swiss
http://www.matisa.ch/en/matisa-links.php

Good day and night for you
Hijau

HijauKuda

Posts : 83
Join date : 2012-01-18

Back to top Go down

Re: Something a bit different

Post by graymac on Thu Jun 21, 2018 6:38 pm

Thanks, @HijauKuda - it does look a bit like those Swiss machines. I couldn't find out much about the little Irish car, performance, engine size etc. but decided I wanted to make one anyway Smile  Just for fun. I was told (by a person who knows these things) that for traffic path allocation purposes they are "timed" at 40mph average. That's fairly consistent with the 80kph top speed quoted for those Matisa machines.
avatar
graymac

Posts : 1946
Join date : 2011-08-28
Location : Co Mayo, Eire

http://www.celtictrainsim.com

Back to top Go down

Re: Something a bit different

Post by leezer3 on Fri Jun 22, 2018 1:30 pm

Matisa VM100ST, built 1994:
http://www.intercityrailwaysociety.org/BookSamplePages/UKRS09samplepages2014.pdf

(Quite handy it was in the sample pages Razz )

leezer3

Posts : 1189
Join date : 2011-08-23

http://www.bvecornwall.co.uk

Back to top Go down

Re: Something a bit different

Post by graymac on Fri Jun 22, 2018 3:39 pm

That's good, it's got a name now, bless it!! Smile
They've looked after it well, it's quite smart still for a 24 year old machine.
It was fun to build, glad I did it.
